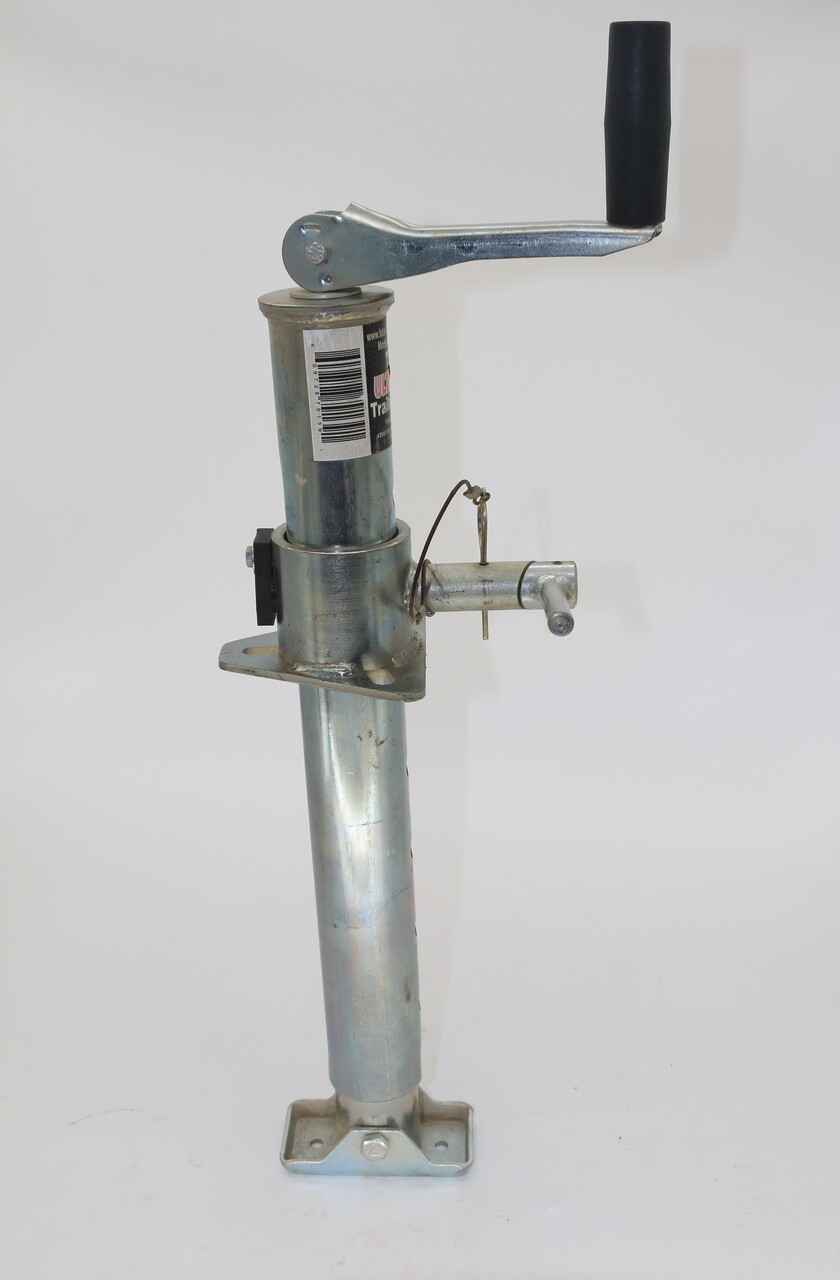

Product Description
Bracket height:
1-3/4" with the jack fully retracted and the collar at the lowest setting
29-1/4" with the jack fully extended and the collar at the highest setting
Total lift: 27-1/2"Mounting bracket hole spacing (center on center): 3" x 3-1/4"
Inner tubing diameter: 2"
Outer tubing diameter: 2-1/4"
Clearance from bottom of bracket to top of handle mount: 7-1/4" x 19-1/4"
Lift capacity: 2,000 lbs
Support capacity: 3,000 lb
